POLYVIA™ PCE Flake is a 97–98% high-solid polycarboxylate superplasticizer designed for efficient transportation, local liquid preparation and flexible concrete admixture formulation.
High Solid Content · Local Liquid Preparation · Flexible Formulation · Efficient Logistics

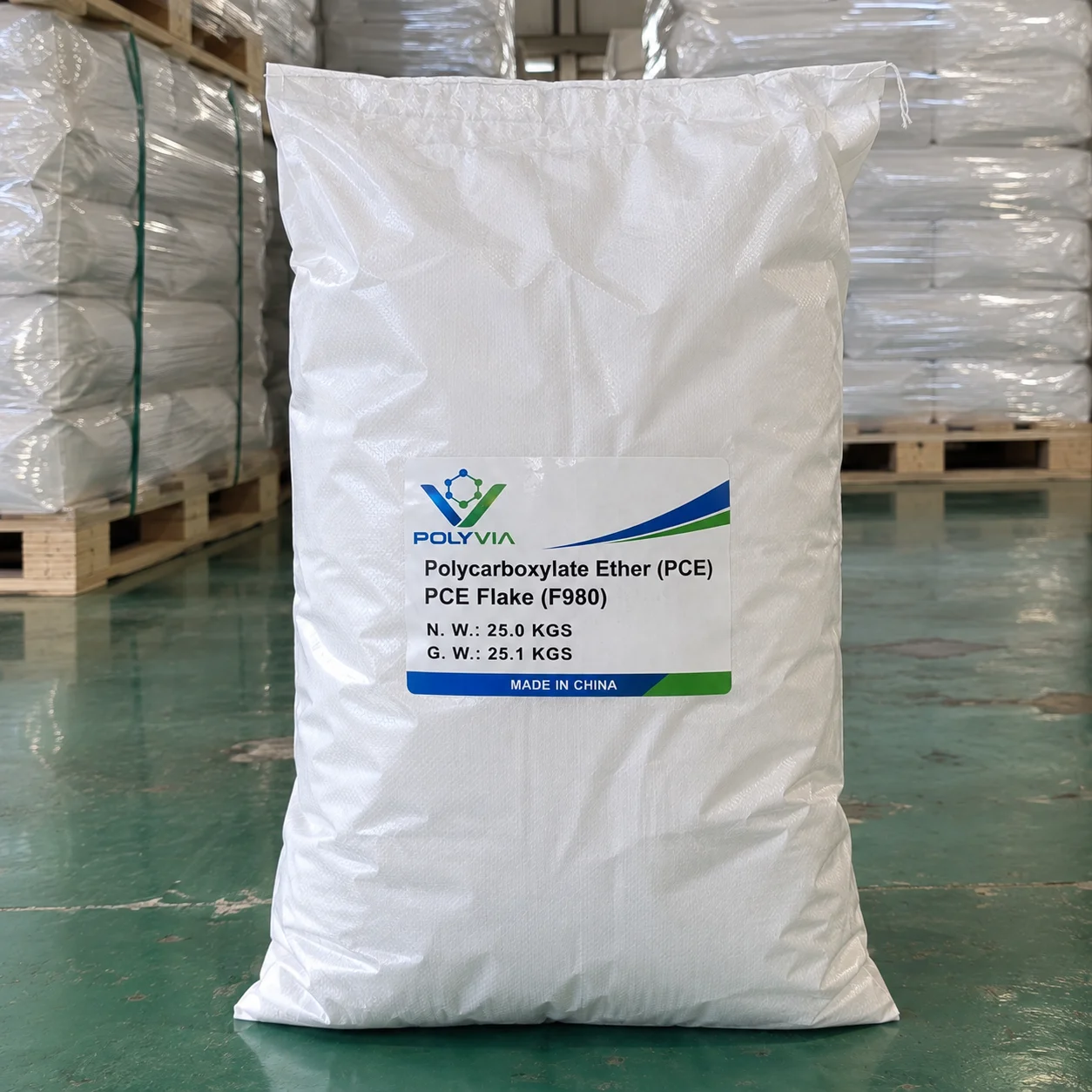

PCE Flake (Polycarboxylate Ether Flake) is a 97–98% high-solid polycarboxylate superplasticizer supplied in concentrated flake form. It can be dissolved in water to prepare liquid PCE for concrete admixture production and formulation.
Solve the practical challenges of importing, storing and formulating liquid PCE with a high-solid, locally convertible PCE solution.

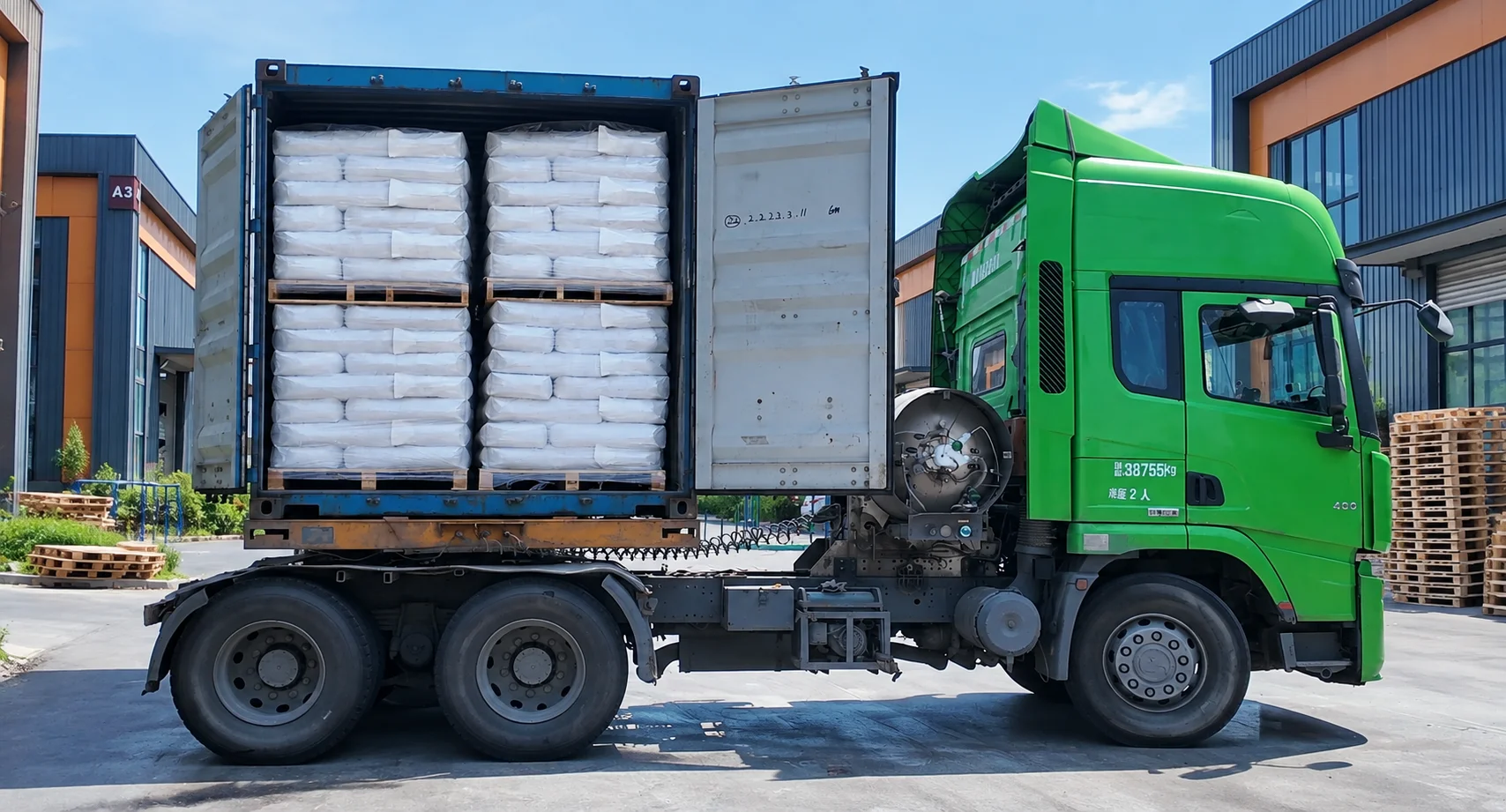

Conventional liquid PCE contains a significant proportion of water. High-solid PCE Flake concentrates the active material, making long-distance transportation more efficient.

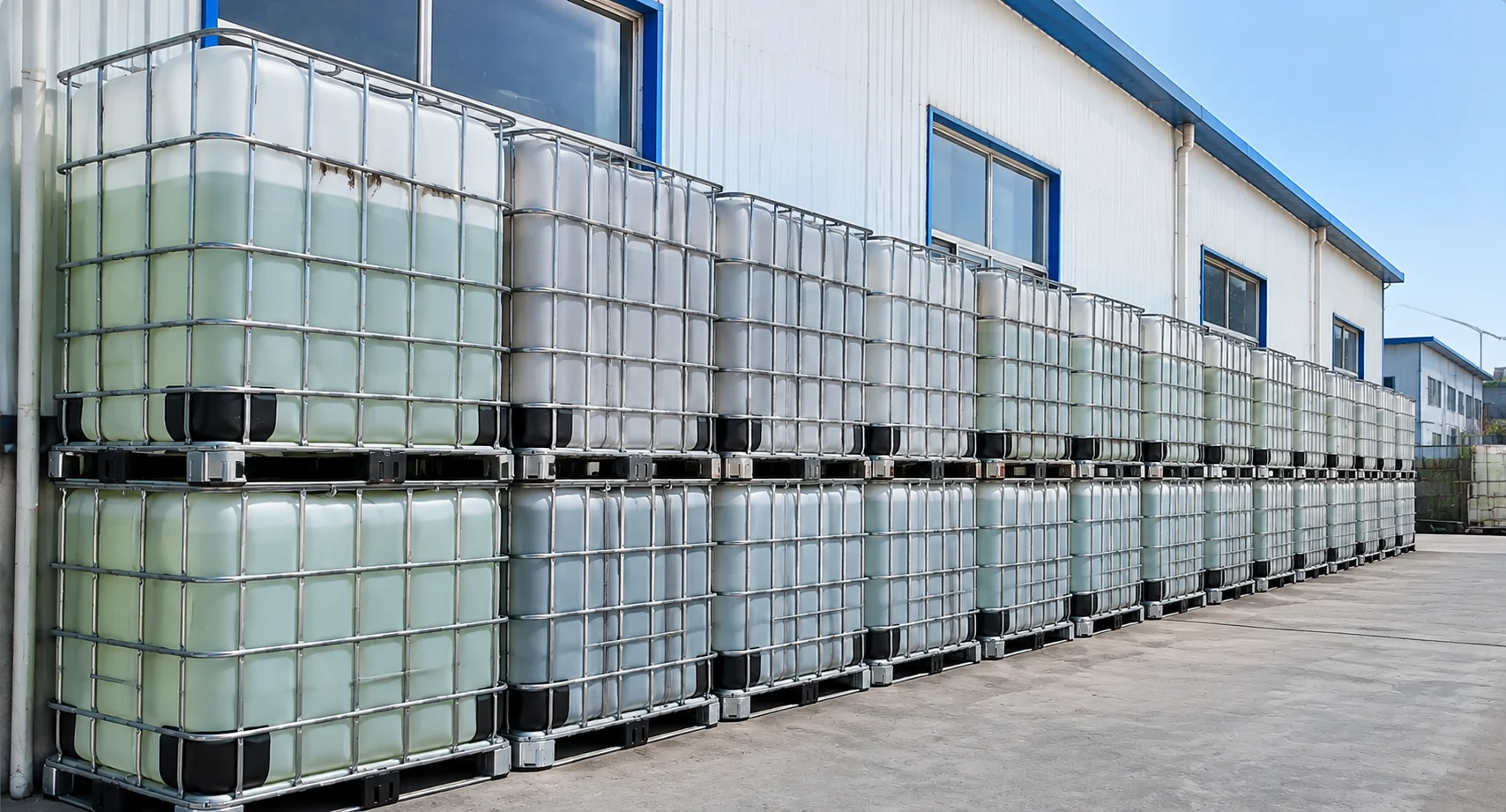

PCE Flake can be dissolved locally to prepare liquid PCE at the required solids content, giving producers greater control over local supply.

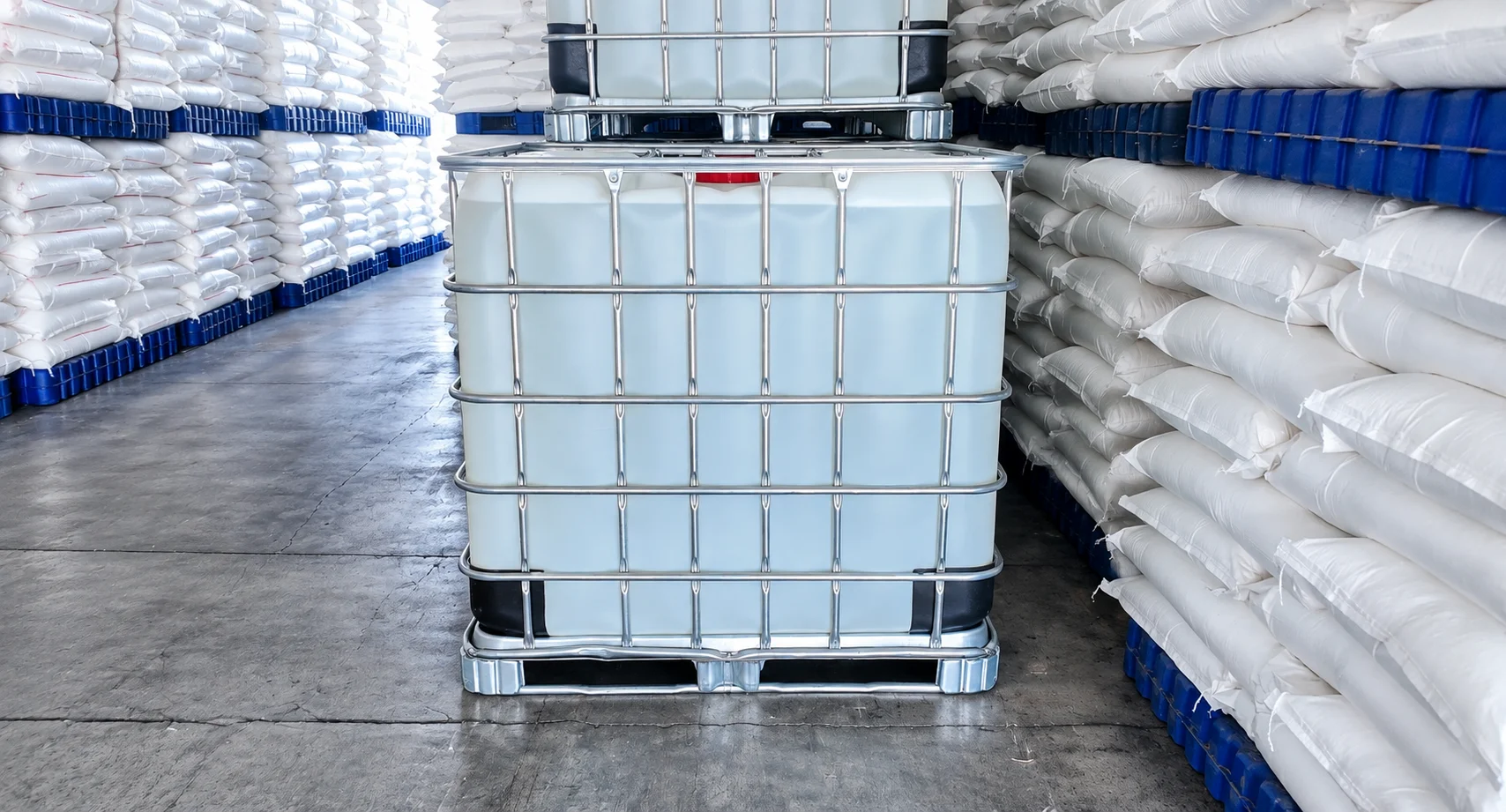

Compared with liquid PCE, concentrated PCE Flake reduces the storage volume required for an equivalent amount of PCE solids and simplifies inventory management.
Use F980 for high water reduction, F970 for slump retention, or develop a suitable blend according to cement chemistry, transport time and concrete performance targets.
Less water to ship. Less space to store, More flexibility to formulate
A smarter PCE supply model for customers who want to prepare and optimize liquid PCE locally.
A Solid PCE Solution Designed for Efficient Logistics, Local Liquid Preparation and Flexible Admixture Development
POLYVIA™ PCE Flake contains approximately 97–98% solid content, allowing customers to transport concentrated PCE materials instead of unnecessary water. The high-solid format improves long-distance transportation efficiency and provides greater flexibility for regional supply management.
PCE Flake can be dissolved with water and converted into liquid PCE solutions at customized concentrations. This enables customers to prepare suitable admixture solutions locally according to production conditions, formulation requirements and concrete performance targets.
The concentrated flake form reduces storage volume compared with conventional liquid PCE products and simplifies inventory management. With proper dissolution procedures, customers can achieve consistent solution quality while improving handling efficiency across different supply locations.
PCE Flake provides formulation flexibility by allowing adjustment of concentration, blending strategy and performance design. It supports concrete systems requiring high water reduction, slump retention control, early strength development and optimized workability performance.
Two performance-focused grades for different concrete requirements, with flexible formulation options through dissolution and blending.
| Grade | Performance Focus | Key Characteristics | Water Reduction | Slump Retention | Recommended Applications |
|---|---|---|---|---|---|
| POLYVIA™ PCE F980 | High Water Reduction Grade | Strong cement dispersion, lower W/B ratio potential and strength-oriented concrete performance | ●●●●● | ●●● | Precast Concrete / HPC / Low W/B Concrete / SCC |
| POLYVIA™ PCE F970 | Slump Retention Grade | Extended workability control for transportation, pumping and placement under demanding conditions | ●●● | ●●●●● | Ready-Mix Concrete / Pumped Concrete / Long Transport / Hot Weather |
POLYVIA™ PCE ES980
Early Strength Grade
Designed for concrete systems requiring faster early-age strength development, shorter demolding time and improved production efficiency.
Recommended Applications: Precast Concrete / Prestressed Concrete / Spun Pile / HPC
| Property | PCE F980 | PCE F970 |
|---|---|---|
| Appearance | White to light yellow solid flake | White to light yellow solid flake |
| Solid Content, % | ≥98 | ≥97 |
| Bulk Density, kg/m³ | 500±50 | 500±50 |
| pH Value, 40% Aqueous Solution, 25°C | 4.0±1.0 | 4.0±1.0 |
| Moisture, % | ≤2.0 | ≤3.0 |
| Water Reducing Ratio, % | ≥25 | ≥15 |
| Total Alkali Content, % | ≤0.3% | ≤0.3% |

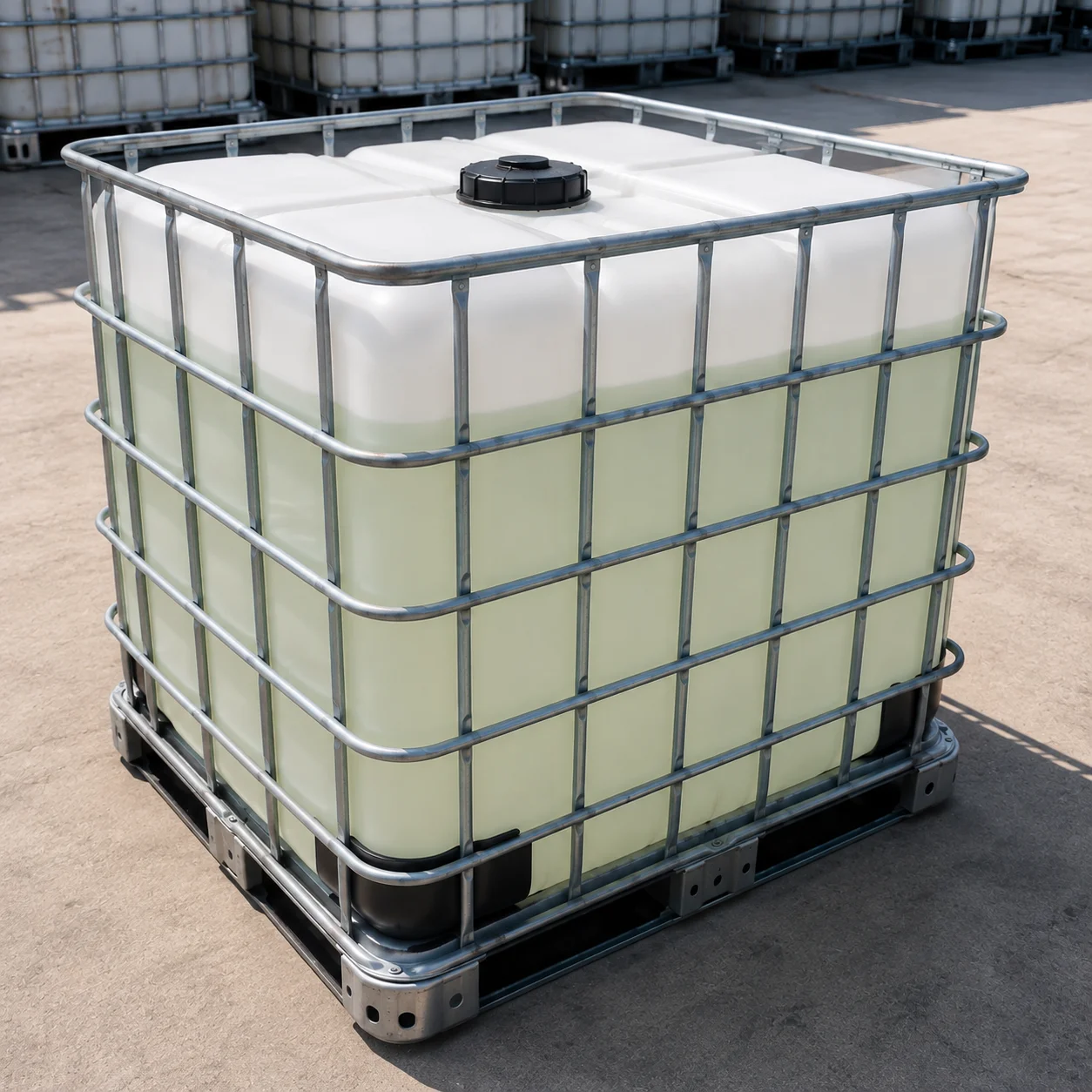

POLYVIA™ PCE Flake serves as a high-solid polycarboxylate ether raw material for producing customized liquid concrete admixtures with adjustable concentration and performance characteristics.
PCE Flake-based admixture systems support ready-mix concrete production by providing efficient cement dispersion, water reduction and extended workability for commercial concrete delivery.
PCE Flake solutions help maintain suitable concrete flowability and workability during pumping operations, supporting efficient placement for large-scale construction projects.
High-performance PCE Flake grades support prestressed concrete systems requiring low water-to-binder ratios, strong dispersion and reliable early strength development.
High water reduction and strong dispersion support low W/B ratio, high strength development and efficient production of demanding concrete systems.
PCE Flake-based solutions support SCC mix designs requiring excellent filling ability, flow control and stable concrete performance with reduced water demand.

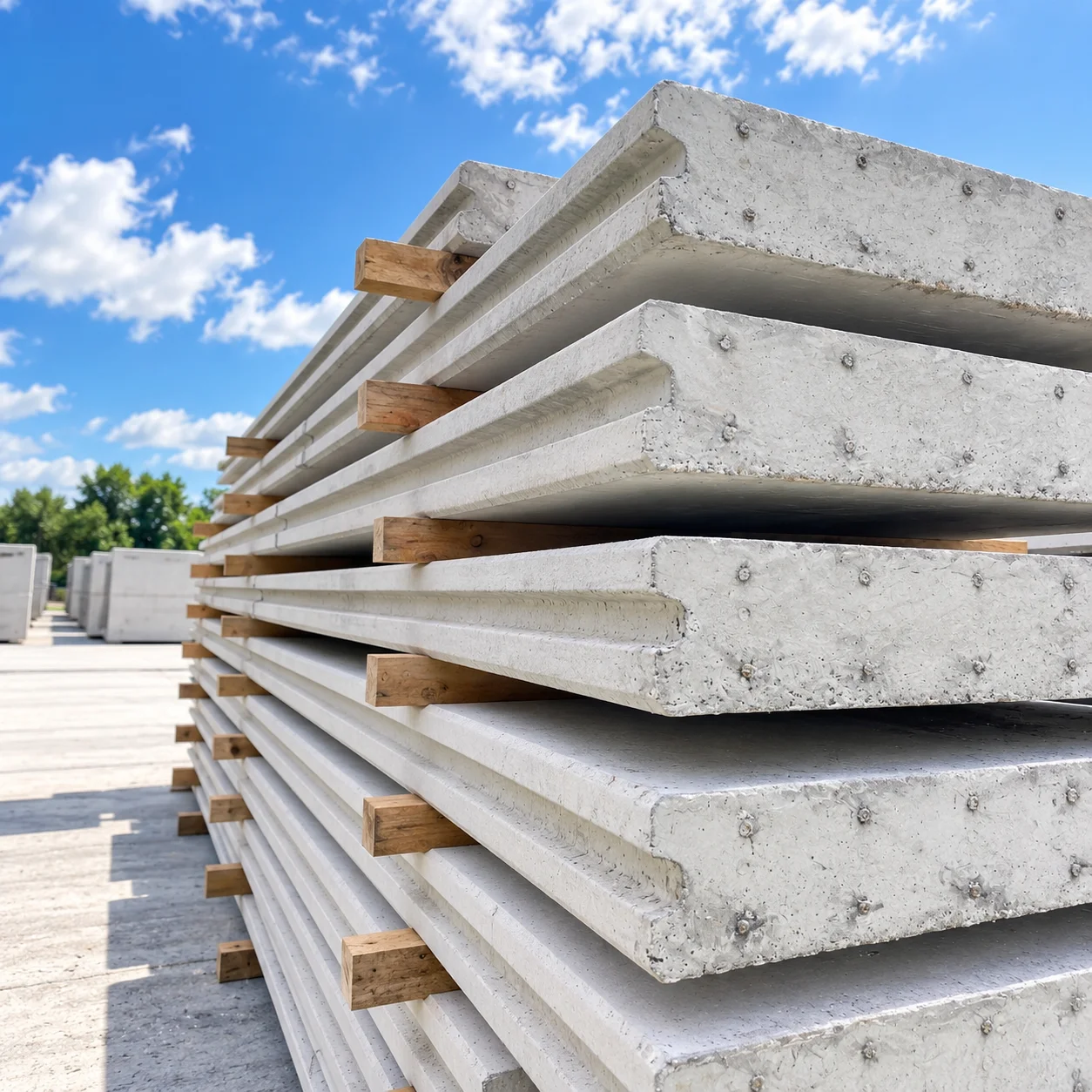

PCE Flake grades support precast concrete manufacturing by enabling optimized workability, low W/B ratios and efficient production cycles for precast elements.

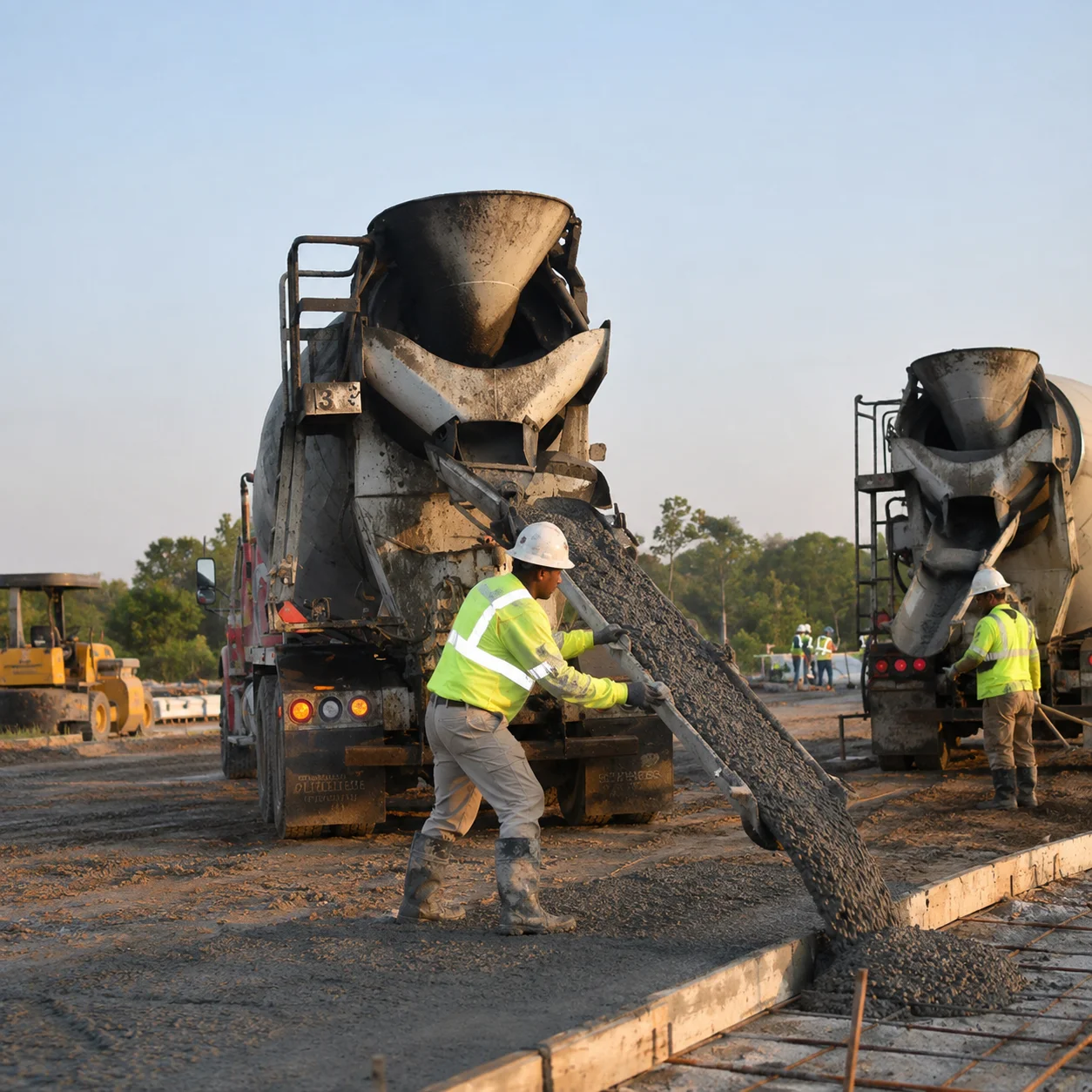

PCE Flake solutions based on retention-focused grades help maintain concrete consistency during extended transportation, hot weather conditions and demanding placement schedules.
98% solid PCE for efficient transport, storage and local liquid preparation.
F980 provides strong cement dispersion and reduces water demand in concrete.
F970 maintains concrete workability during extended transportation, pumping and placement.
PCE Flake dissolves readily in water to prepare homogeneous PCE Liquid.
Prepared PCE Liquid can be dosed directly into concrete after complete dissolution.
High-solid form reduces water transportation and improves overall logistics efficiency.
POLYVIA™ PCE Flake enables flexible local preparation of liquid PCE solutions through controlled dissolution and concentration adjustment.
With approximately 97–98% solid content, PCE Flake allows customers to transport concentrated PCE materials efficiently and prepare liquid solutions according to production requirements, storage conditions and concrete performance targets.
Example: 1 MT PCE Flake + 1 MT Water ≈ 2 MT PCE Liquid (50% Solid)
The final concentration can be adjusted by controlling the ratio of PCE Flake and water according to specific formulation requirements.
Select the required liquid PCE concentration and determine the appropriate PCE Flake-to-water ratio based on production requirements and application targets.
Add PCE Flake gradually into clean water under controlled mixing conditions to ensure uniform dissolution and consistent solution quality.
Confirm the prepared PCE solution reaches the target concentration with uniform appearance before further formulation or application.
The prepared liquid PCE solution can be used for admixture production or incorporated into concrete systems according to project requirements.
POLYVIA™ provides support for PCE Flake dissolution, concentration adjustment, solution preparation and application evaluation to help customers develop suitable PCE systems.
PCE Flake and PCE Liquid are based on the same polycarboxylate ether technology but provide different advantages depending on transportation conditions, production capability and application requirements.
| Comparison | PCE Flake | PCE Liquid |
|---|---|---|
| Physical Form | Concentrated solid flake with high solid content | Ready-to-use aqueous solution |
| Active Content | ≥97-98% | ≥50% |
| Recommended Users | Admixture manufacturers, regional suppliers and companies requiring local formulation capability | Concrete producers requiring ready-to-use liquid admixture solutions |
| Transportation Efficiency | More efficient for long-distance supply due to reduced water transportation | Higher transportation weight due to water content |
| Storage Requirement | Lower storage volume with solid material handling | Requires liquid storage facilities and container management |
| Production Approach | Dissolved and adjusted locally according to target concentration and formulation requirements | Supplied as finished liquid solution for direct application |
| Formulation Flexibility | High flexibility for customized PCE solution preparation and blending strategies | Suitable for standardized liquid admixture production |
| Handling Process | Requires controlled dissolution before use | Convenient handling without additional preparation |
Note: POLYVIA™ supports customers in selecting suitable PCE formats, preparing liquid solutions and optimizing admixture formulations according to specific concrete requirements.
POLYVIA supports customers beyond material supply. Including Grade Selection, Dissolution Guidance, Formulation Adjustment, Cement Compatibility Evaluation, Concrete Trial Support.
Specifications, properties, handling and recommended use of POLYVIA™ PCE Flake.
Download ↓
Handling, storage and safety information.
Download ↓
Recommended preparation of PCE Liquid from PCE Flake.
Download ↓
Batch-specific quality documentation.
Download ↓PCE Flake provides a high-concentration PCE format with approximately 98% solids, reducing the amount of water transported compared with conventional liquid PCE.
Customers can ship concentrated PCE and prepare liquid PCE locally when required, improving logistics and supply flexibility.
Choose according to the main concrete performance requirement:
F980 — High Water Reduction: for strong initial dispersion, reduced water demand and low W/B concrete.
F970 — Slump Retention: for extended workability during transportation, pumping and placement.
Where both are required, F980 and F970 can be blended and optimized through concrete trials.
For 98% solid PCE Flake, approximately 960 kg of water is required to prepare a true 50% solid solution:
1,000 kg PCE Flake + 960 kg Water → 1,960 kg PCE Liquid at 50% solids
For practical preparation, adding 1,000 kg water produces approximately 2,000 kg of ~49% solid PCE Liquid.
Yes. After the flakes are completely dissolved and the solution is homogeneous, the prepared PCE Liquid can be dosed directly into concrete.
The optimum dosage should be determined according to cement chemistry, W/B ratio, SCMs and target concrete performance.
Both are high-solid forms of PCE, but they are designed for different handling and application needs.
PCE Flake is particularly suitable for local preparation of PCE Liquid and concrete admixture formulation, offering a concentrated form for efficient transportation and storage.
PCE Powder is easier to dose directly into dry-mix formulations such as mortar, grout and self-leveling compounds.
For customers primarily producing liquid concrete admixtures or concrete, PCE Flake is often the more practical choice.
Yes. This is particularly useful in ready-mix, pumped and long-transport concrete where both initial water reduction and workability retention are required.
Use F980 as the HWR component and F970 as the SR component, then optimize the ratio according to initial slump, required retention time, temperature and cement compatibility.
Yes. PCE Flake can be dissolved in water to prepare different liquid concentrations according to formulation requirements. The flake-to-water ratio should be calculated from the actual solid content and target concentration.
Store PCE Flake in a cool, dry and well-ventilated place, protected from moisture and excessive heat. Keep the packaging tightly sealed to minimize softening or agglomeration during storage.
PCE Flake offers a high-concentration alternative to conventional liquid PCE, reducing the amount of water transported and improving shipping efficiency. After delivery, it can be dissolved in water to prepare PCE Liquid locally for concrete use or admixture formulation.
