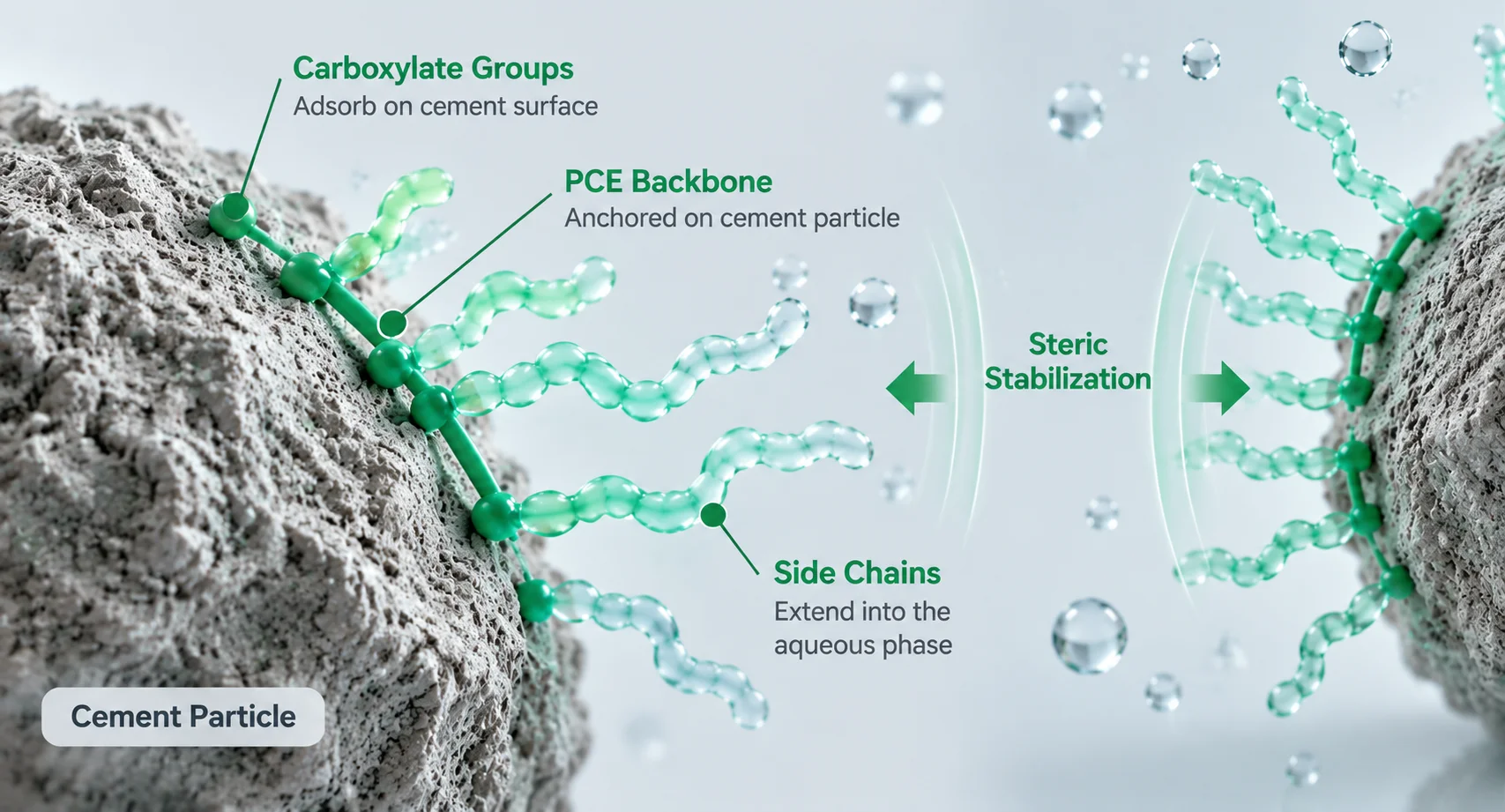

Cement Surface Interaction
PCE polymer chains adsorb onto cement particle surfaces, forming a functional layer that influences particle interaction.
POLYCARBOXYLATE ETHER (PCE) SUPERPLASTICIZER
Polycarboxylate Ether (PCE)
High-Performance PCE Superplasticizer Technology for Concrete
POLYVIA™ PCE is designed to improve cement dispersion, water reduction, workability retention and early-strength performance across modern concrete systems.
High Water Reduction
Slump Retention
Early Strength
Rheology & Formulation
WHAT IS POLYCARBOXYLATE ETHER (PCE)?
Advanced Superplasticizer Technology for Concrete
Polycarboxylate Ether (PCE) is a high-performance concrete superplasticizer based on comb-shaped polymer technology. Through adsorption and steric repulsion, PCE improves cement particle dispersion, enabling lower water demand and controlled concrete workability.
Different molecular designs can be optimized for water reduction, slump retention, early strength and application-specific performance.
Product Name
Polycarboxylate Ether (PCE) Superplasticizer
Physical Forms
Liquid / Powder / Flake
Performance Types
High Water Reduction / Slump Retention / Early Strength
Solid Content
40–50% Liquid / ≥97-98% Powder & Flake
Main Function
Water Reduction & Concrete Performance Control
Supply Options
Ready-to-Use / Dry Blending / Local Dilution
Applications
Ready-Mix / Precast / Prestressed / Spun Pile / PHC / SCC / HPC / Dry-Mix
HOW POLYCAROBXYLATE ETHER PCE WORKS
Molecular Design for Controlled Concrete Performance

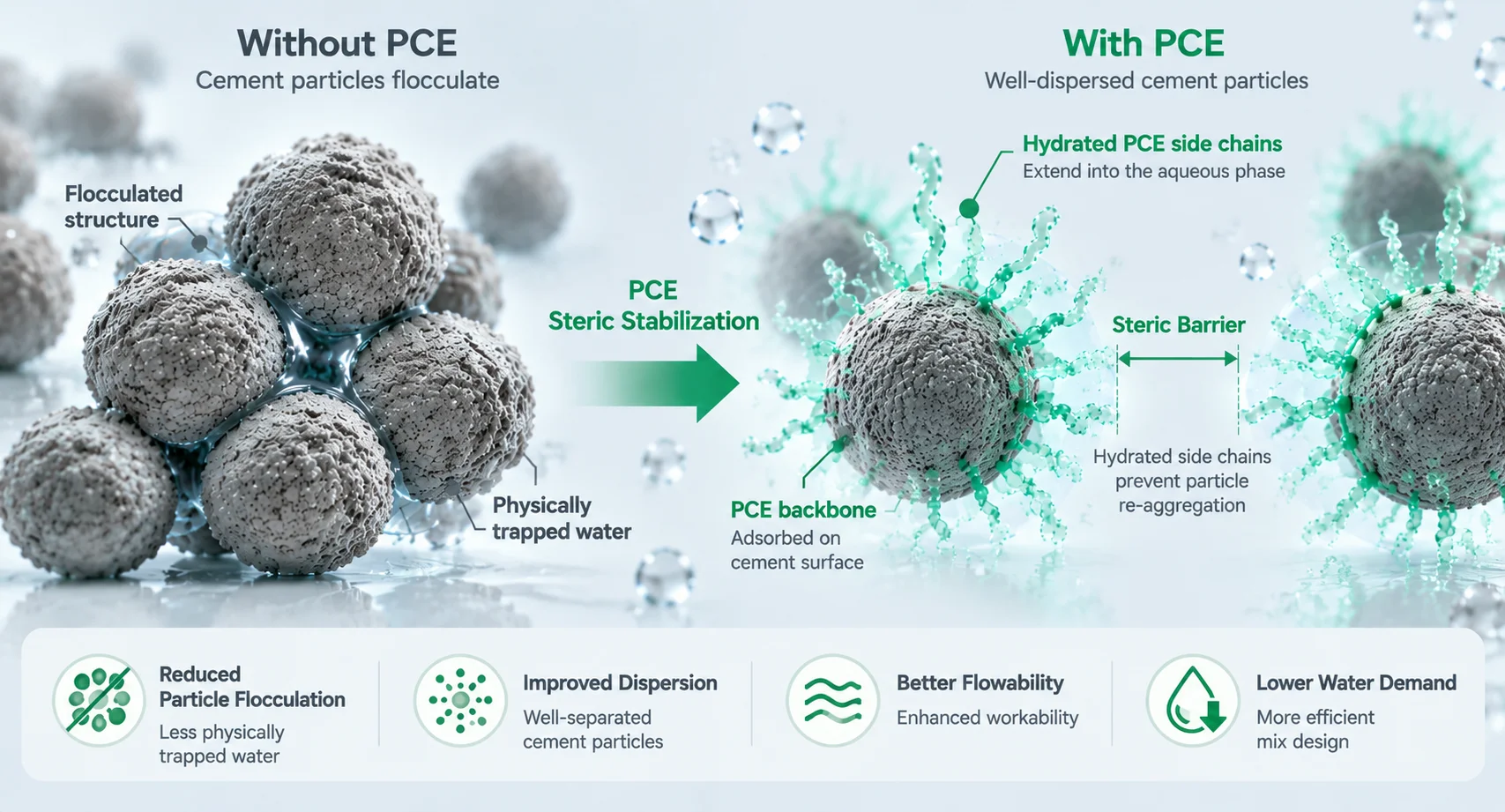

Steric Hindrance & Dispersion
Polyether side chains create steric repulsion between cement particles, reducing flocculation and improving dispersion.

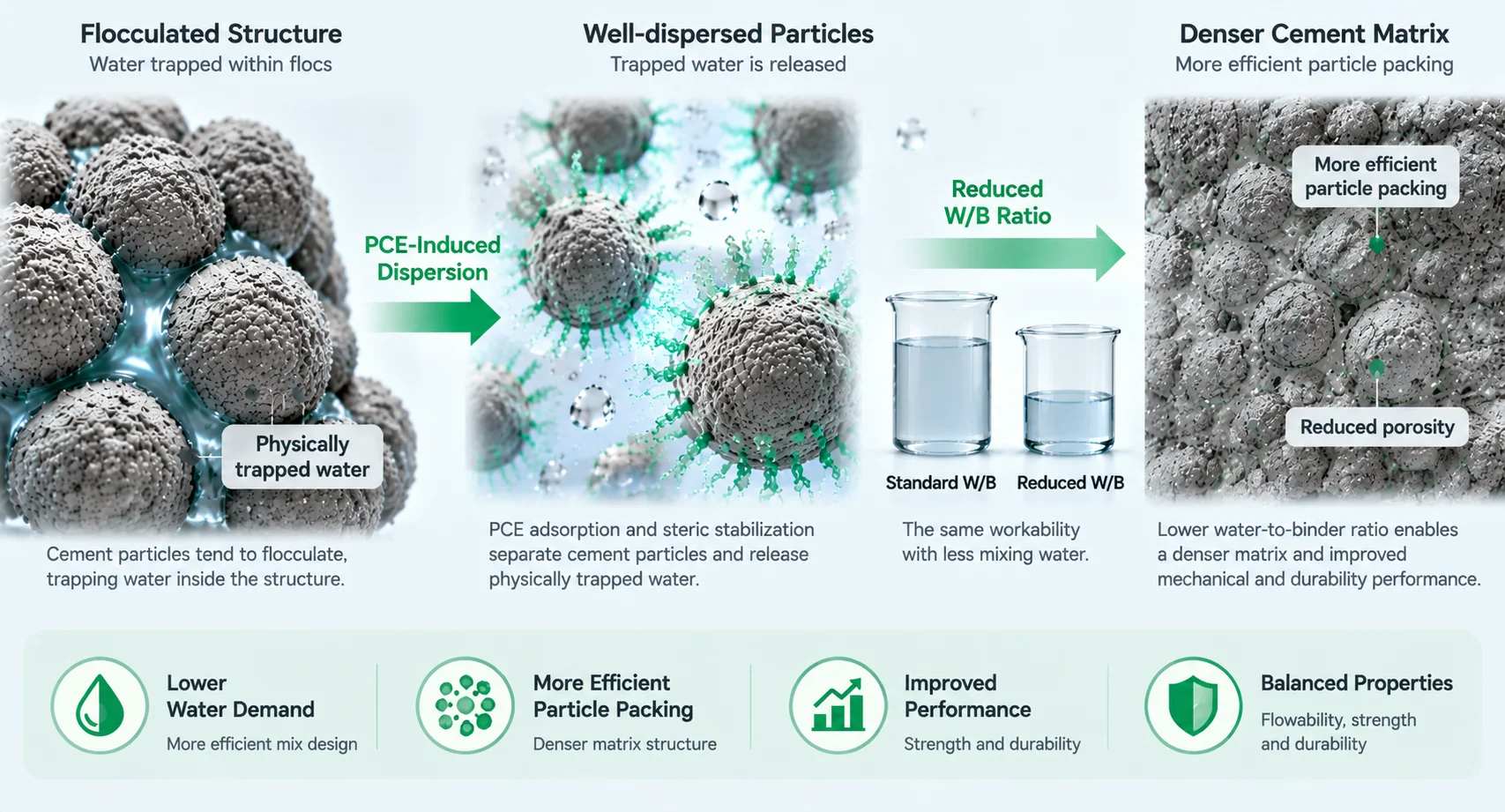

Water Availability & Reduction
Improved dispersion releases entrapped water, reducing water demand while maintaining concrete workability.

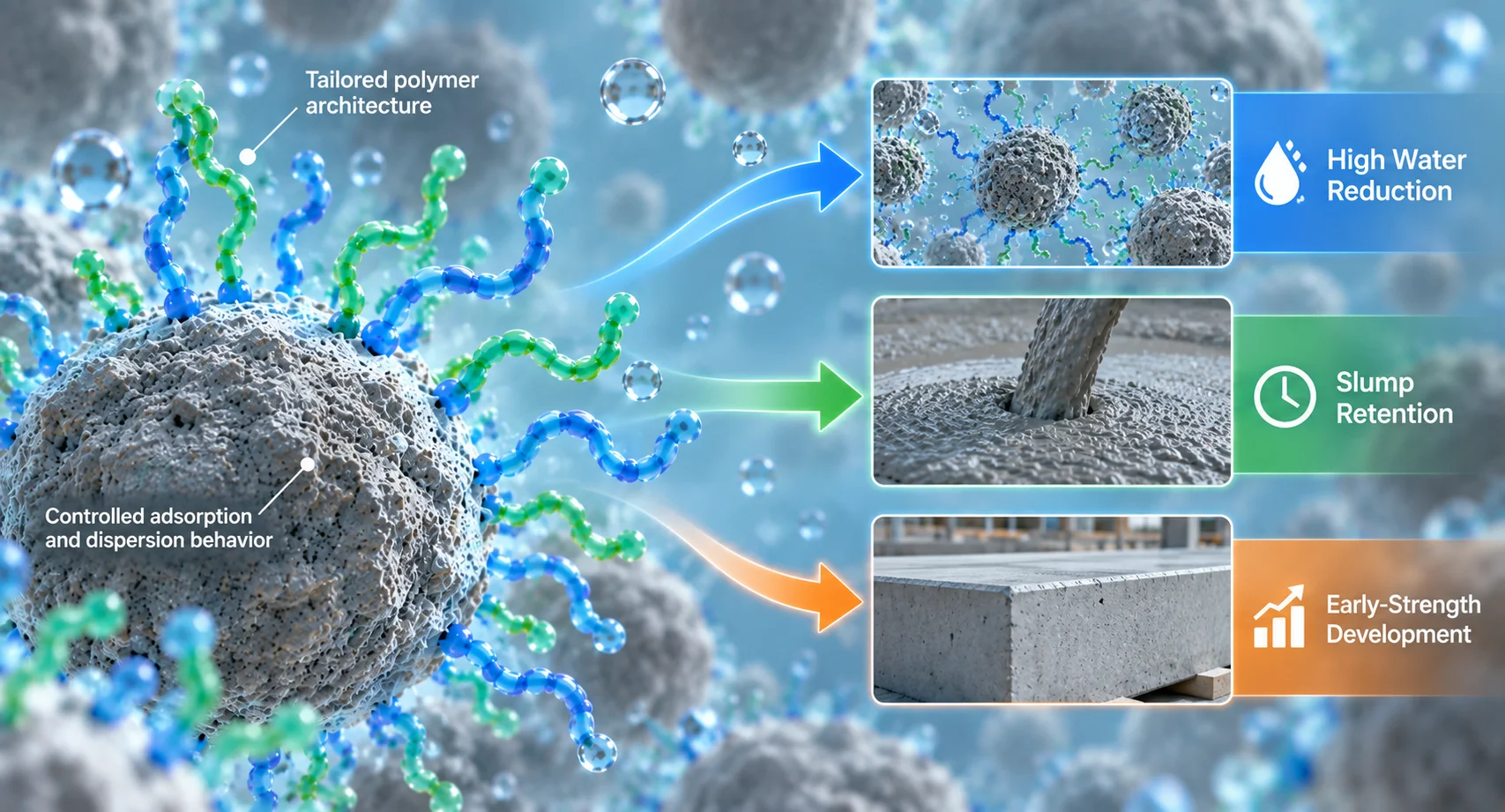

Molecular Design
PCE molecular structure can be tailored for water reduction, slump retention or early-strength performance.
EXPLORE POLYVIA™ PCE PRODUCTS
Compare PCE forms and performance types based on your formulation, production process and supply requirements.
| Selection Factor | PCE Powder | PCE Liquid | PCE Flake | Early-Strength PCE |
|---|---|---|---|---|
| Best Fit | Dry & Concentrated Formulation | Liquid Admixture Formulation | Local Liquid Preparation | Early-Strength Concrete |
| Supply Form | Powder | Liquid | Flake | Powder / Liquid |
| Solid Content | Grade-Dependent | ≥ 40–50% | ≥ 97–98% | Grade-Dependent |
| How It Is Used | Dry Blend / Dissolve in Water | Formulate / Direct Dose | Dissolve → Formulate | Formulate / Dose |
| Primary Value | Dry-Form Flexibility | Direct Liquid Use | Logistics & Local Preparation | Faster Strength Development |
| Typical Use | Dry-Mix / Admixture Formulation | Ready-Mix / Precast / HPC | Admixture Production | Precast / Prestressed / PHC |
PCE Technologies for Different Formulation & Performance Requirements
PCE Powder
High-Solid Powder PCE for Flexible Formulation
Concentrated powder PCE for concrete admixtures and formulations requiring efficient water reduction, performance control and dry-form supply.
Water Reduction · Slump Retention · Dry Formulation
PCE Liquid
Ready-to-Formulate PCE for Concrete Admixtures
Liquid PCE grades for water reduction, slump retention and controlled concrete performance across ready-mix and precast systems.
HWR · Slump Retention · Workability Control
PCE Flake
Concentrated PCE for Local Liquid Preparation
High-solid PCE in concentrated flake form for efficient transportation, local liquid preparation and flexible admixture production.
High Solid Content · Local Preparation · Efficient Logistics
Early Strength PCE
Specialized PCE for Faster Strength Development
Early-strength-oriented PCE for concrete systems requiring efficient water reduction, faster early-age strength development and shorter production cycles.
Early Strength · Faster Demolding · Production Efficiency
CHOOSE PCE BY PERFORMANCE
High Water Reduction
Achieve target flow with significantly reduced mixing water for lower W/B and higher concrete performance.
Recommended:
POLYVIA™ PCE HWR
Slump Retention
Maintain concrete workability during transport, pumping and placement for more reliable ready-mix performance.
Recommended:
POLYVIA™ PCE SR
Early Strength
Accelerate early strength development for faster demolding, mold turnover and precast production cycles.
Recommended:
POLYVIA™ PCE ES
Rheology & Formulation
Balance flow, retention, strength and compatibility through optimized PCE selection and formulation.
Recommended:
POLYVIA™ PCE FLAKE
PCE SELECTION GUIDE
Choose by Product Form, Performance & Application
| Performance Requirement | Recommended Grade(s) | Form | Typical Application |
|---|---|---|---|
| Maximum Water Reduction | PCE 840 / F980 / HWR Liquid | Powder / Flake / Liquid | Self-Leveling / HPC / High-Flow Systems |
| Slump Retention | PCE 850 / F970 / SR Liquid | Powder / Flake / Liquid | Ready-Mix / Long Transport / Hot Weather |
| Balanced Performance | PCE 860 | Powder | Dry-Mix Mortar / Grout / General Concrete / Shotcrete |
| Low-Viscosity High Performance | PCE 870 | Powder | UHPC / HPC / Precast / Prestressed / PHC |
| Early Strength | ES980 / ES50 | Powder / Liquid | Precast / Prestressed / PHC / Spun Pile |
| Local Liquid Preparation | F980 / F970 | Flake | Local Admixture Production |
Grade selection should be based on cement chemistry, SCMs, aggregate characteristics, W/B ratio, required workability, temperature and strength targets. Laboratory and production trials are recommended before final formulation.
APPLICATIONS
PCE Technology Across Concrete & Cementitious Systems
Explore how POLYVIA™ PCE technology addresses water reduction, slump retention, flow control and early-strength requirements across concrete and cementitious applications.
CONCRETE APPLICATIONS

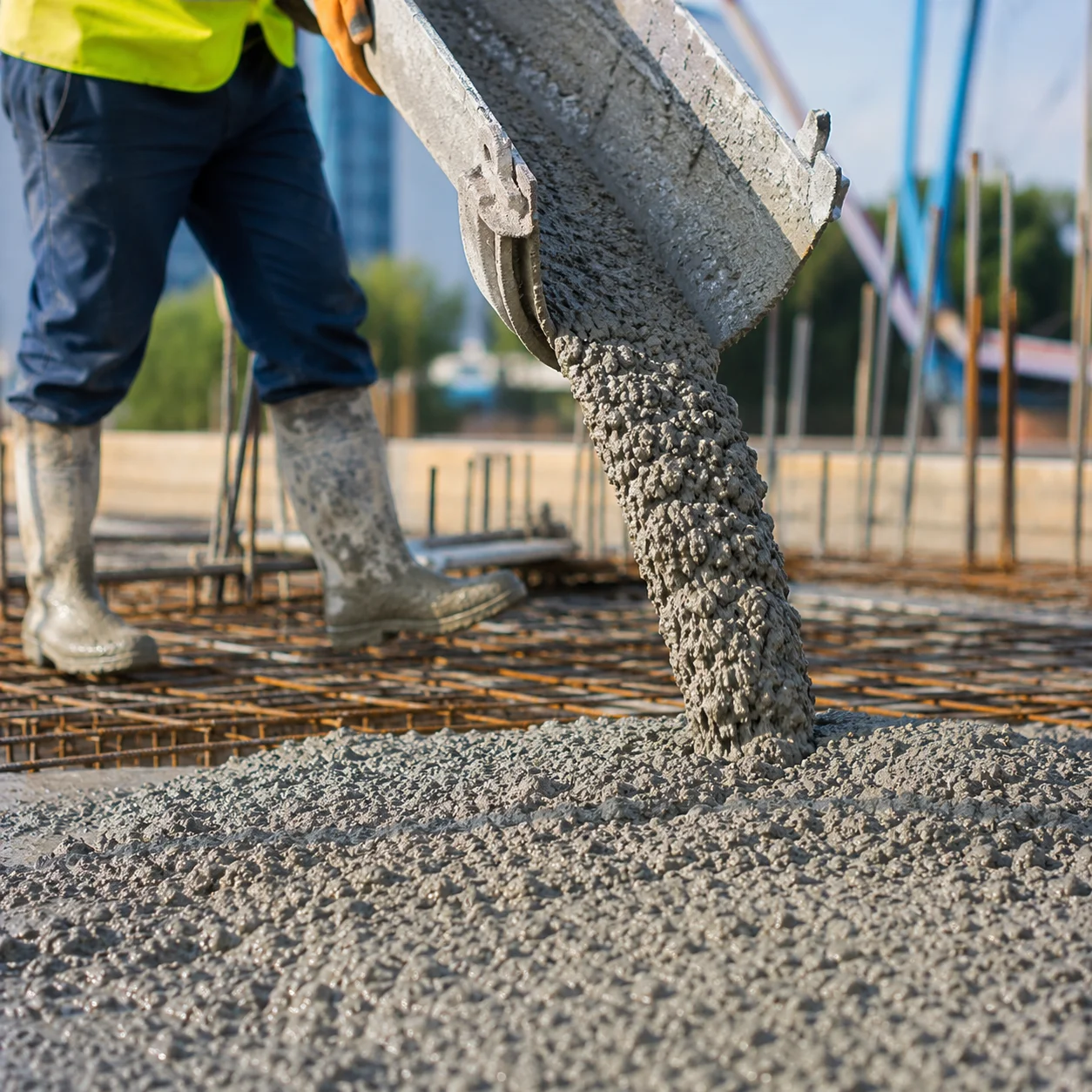

Ready-Mix Concrete
Controls water demand and slump loss during transport, pumping and placement, helping maintain consistent workability in ready-mix concrete under changing site conditions.

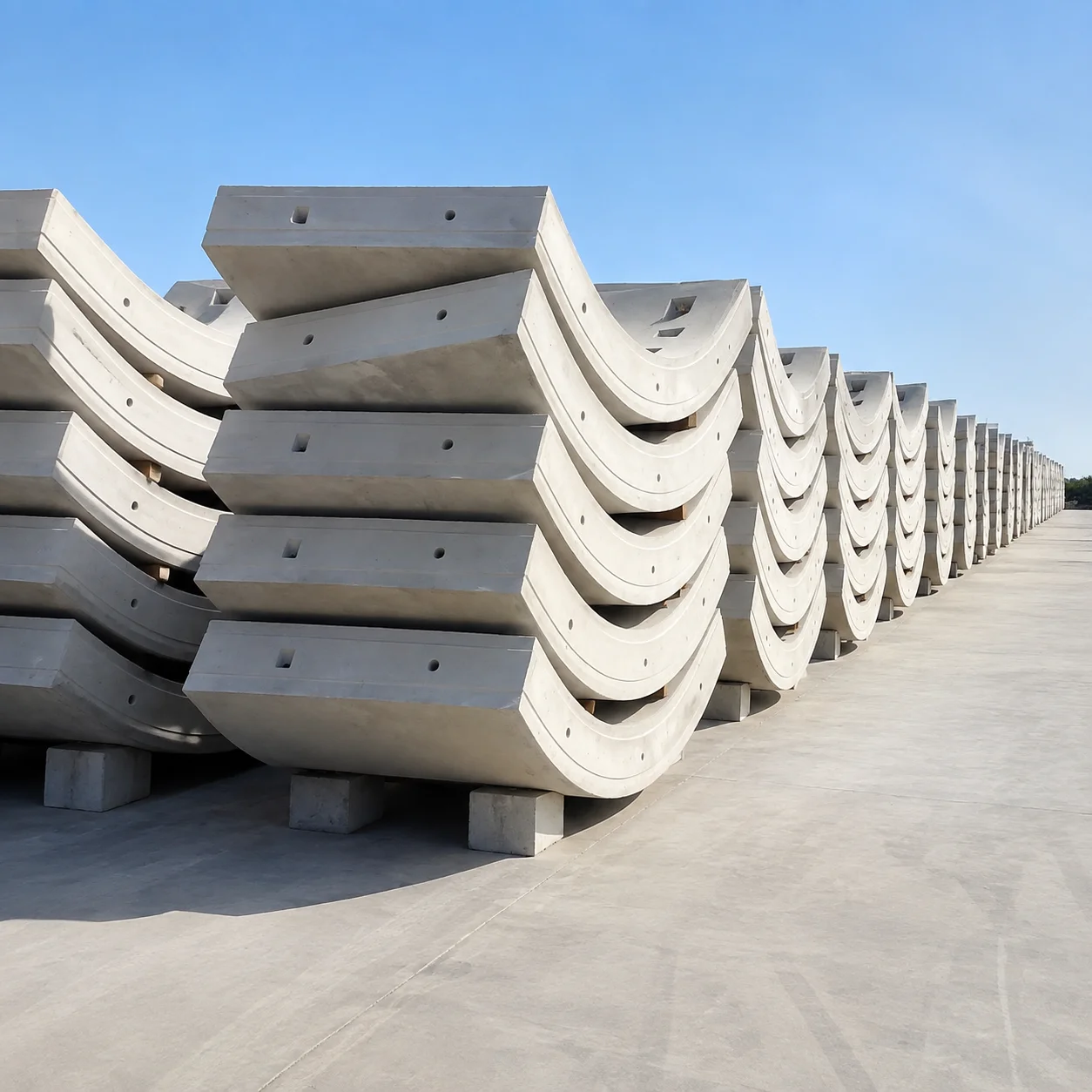

Precast Concrete
Combines efficient water reduction with controlled early-age performance for precast concrete production, faster demolding and consistent component quality.

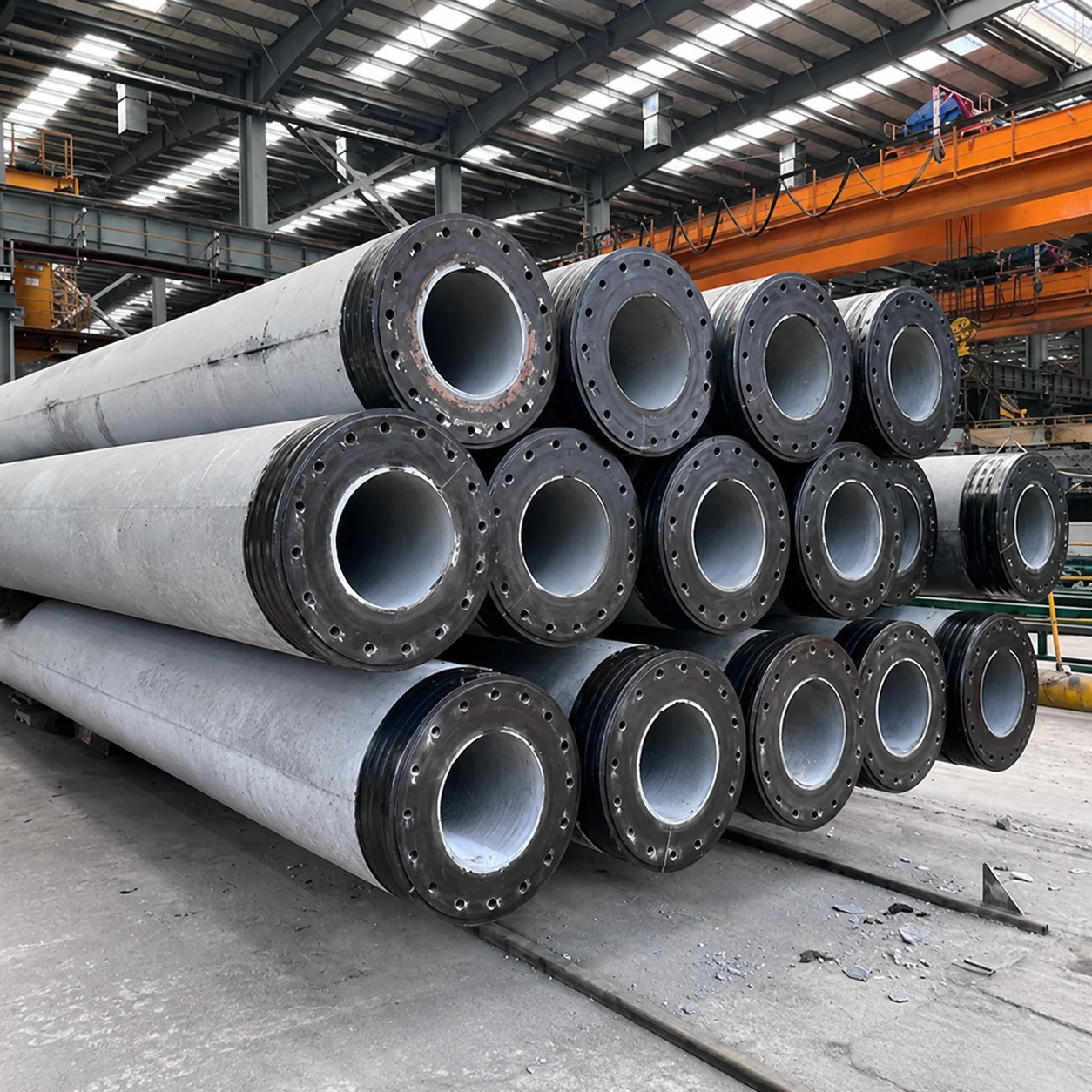

Spun Pile & PHC
Designed for prestressed spun pile and PHC concrete requiring low W/B ratios, rapid early-strength development and efficient steam-curing production cycles.

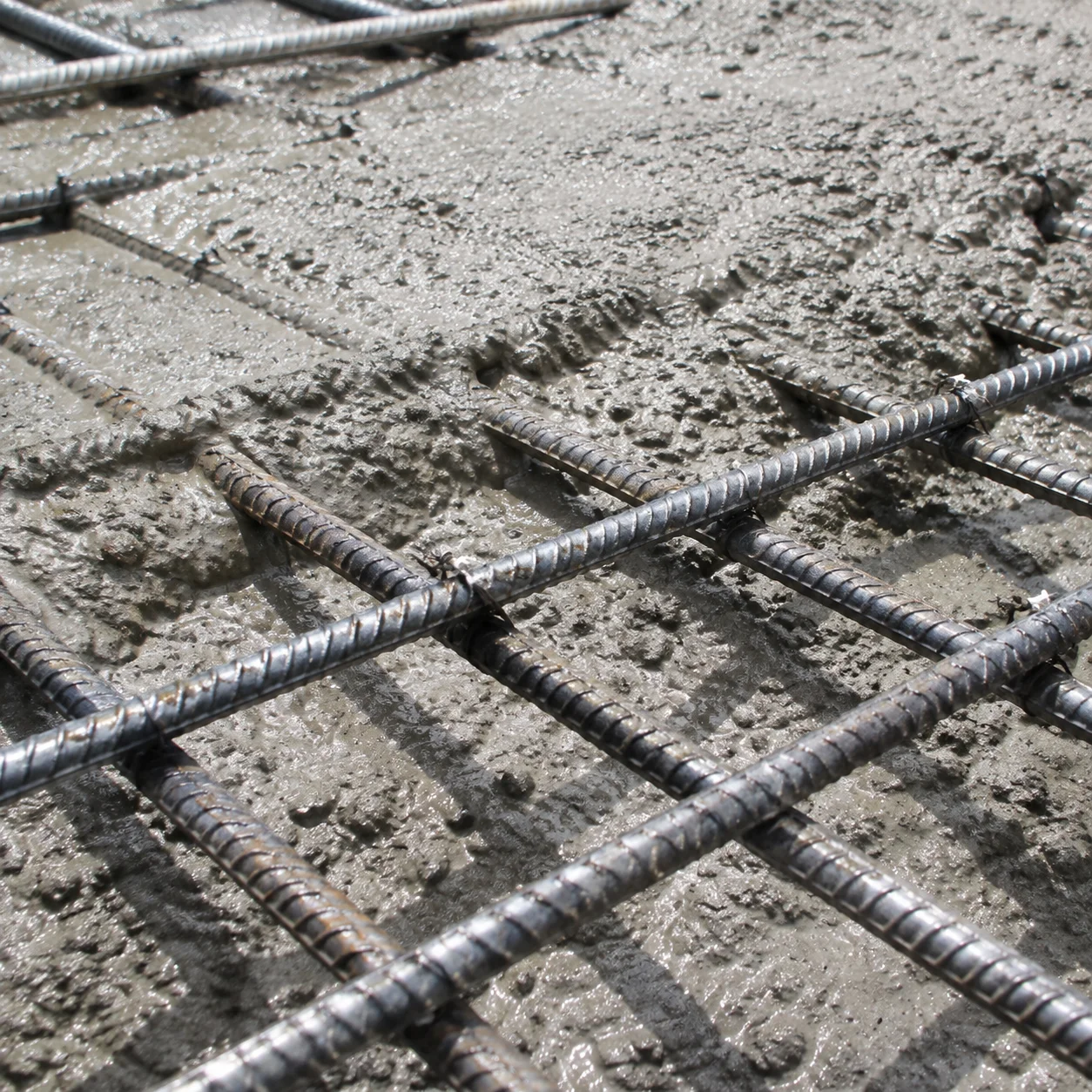

Self-Compacting Concrete
Achieves high flowability at controlled water demand for self-compacting concrete (SCC) requiring reliable filling ability, passing performance and mix stability.
Concrete & Mortar Application
HPC & UHPC
Enables low W/B mix design and high fluidity in high-performance concrete (HPC) and ultra-high-performance concrete (UHPC) with demanding strength requirements.

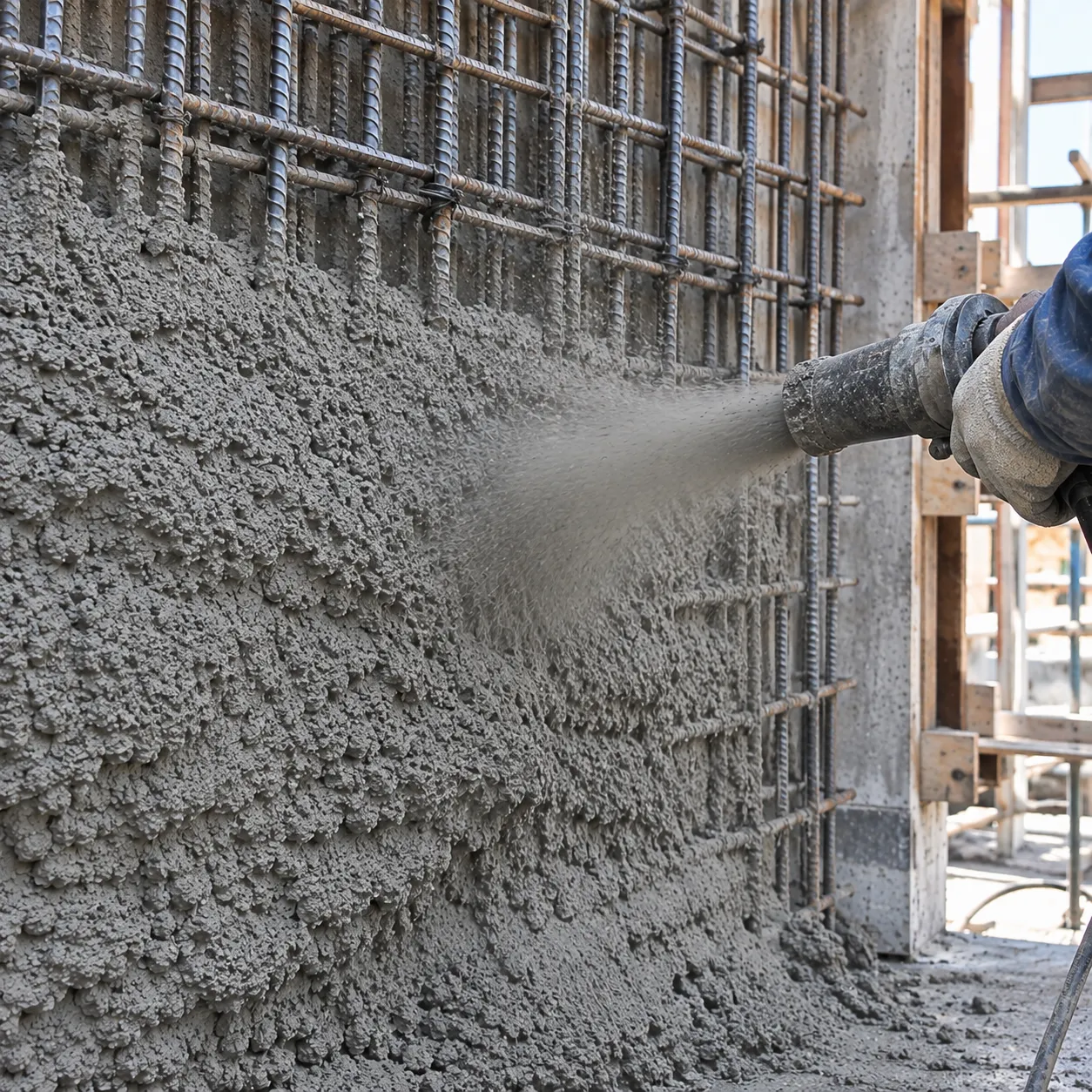

Shotcrete
Manages water demand and fresh-concrete workability in shotcrete, sprayed concrete and spray-applied concrete for tunnel, mining and repair applications.

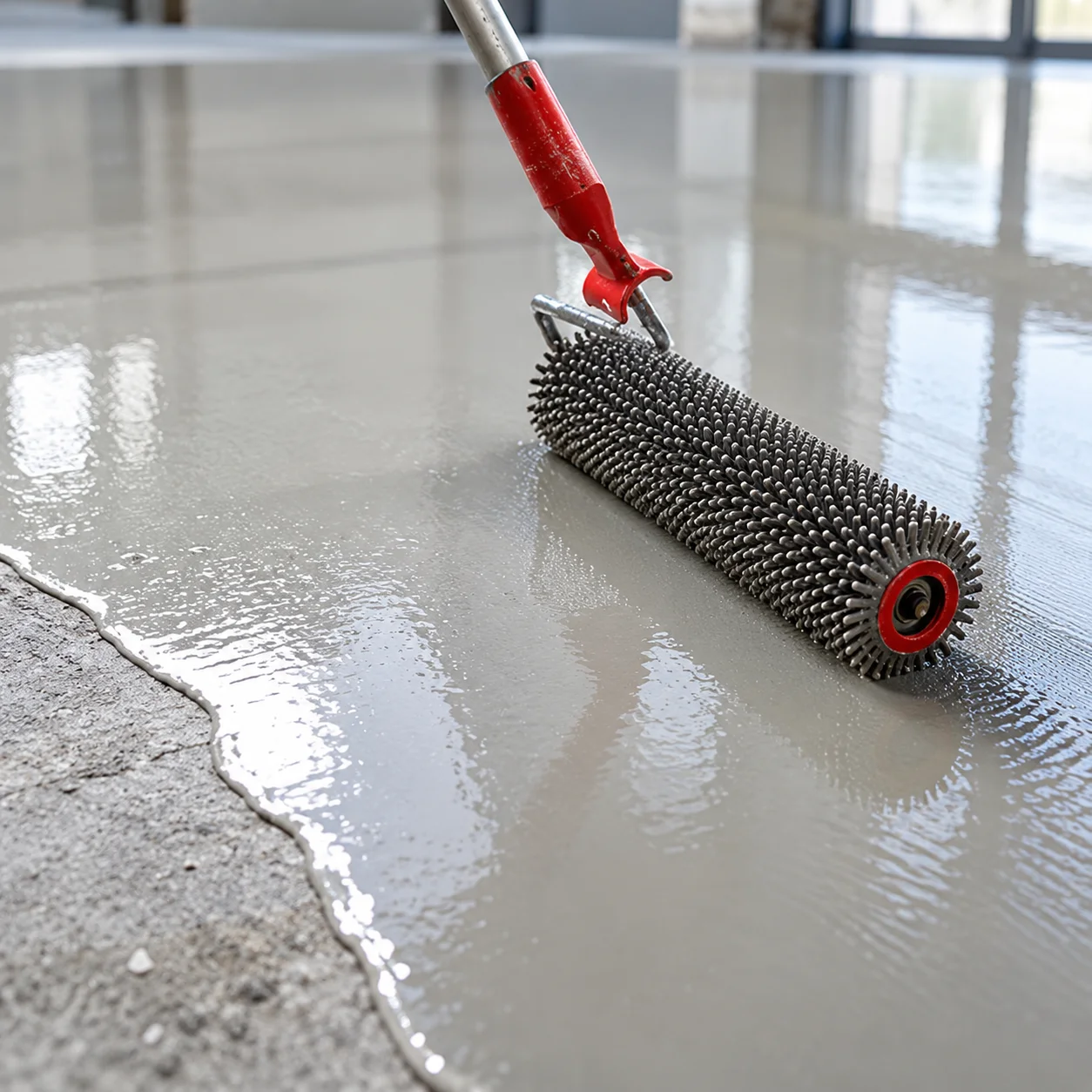

Self-Leveling Mortar
Promotes high fluidity at controlled water demand in cementitious self-leveling mortar and flooring compounds, enabling consistent spreading and leveling behavior.

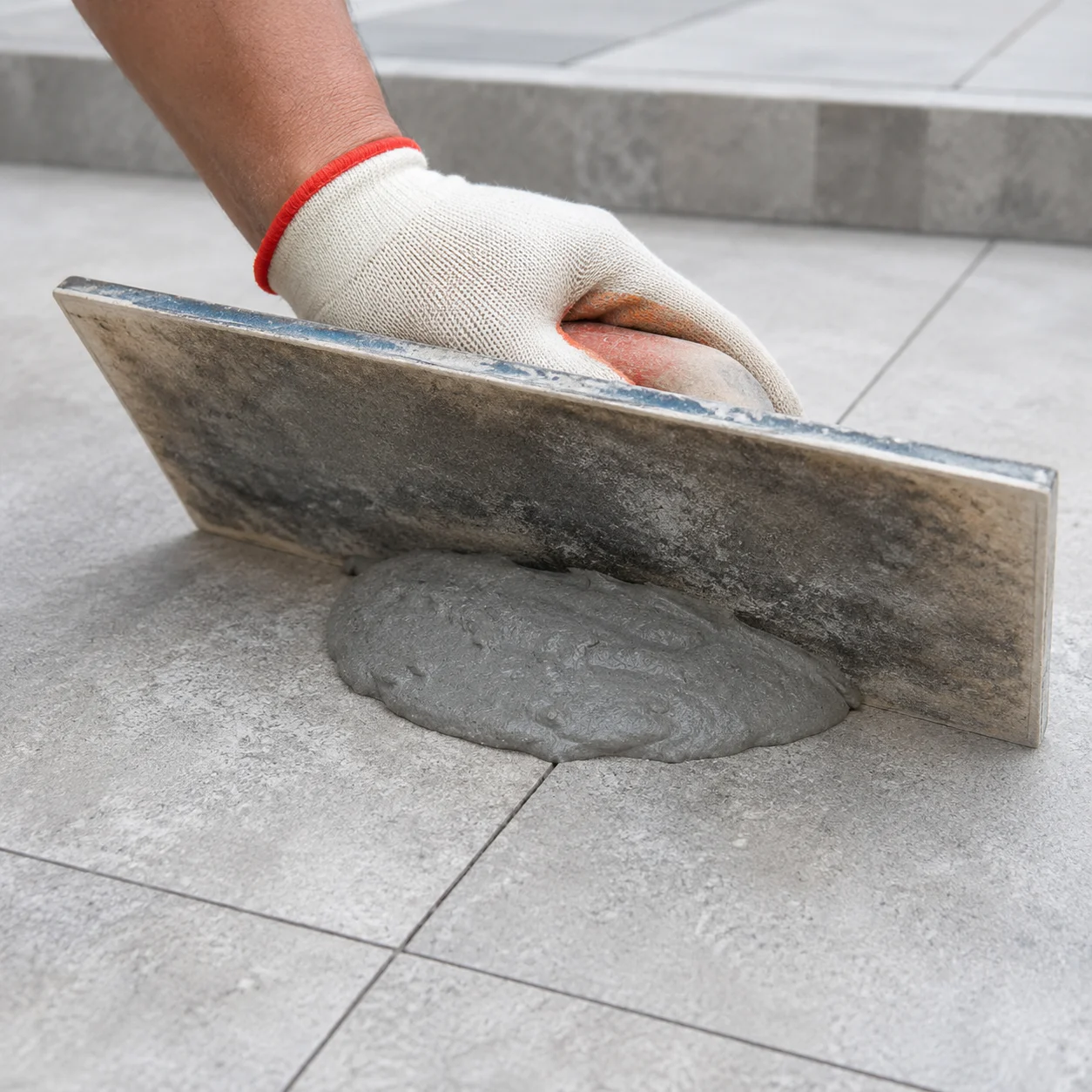

Dry-Mix Formulations
Integrates powder PCE into dry-mix mortar, grout and cementitious formulations requiring efficient dispersion, controlled flow and formulation flexibility.
TECHNICAL INFORMATION
PCE Performance In Formulation Systems
PCE Performance Depends on the Complete Concrete System
PCE performance is influenced by the interaction between polymer chemistry, cementitious materials, mix design and production conditions. The same PCE grade may perform differently across concrete systems.
Cement & SCMs
Cement chemistry, fineness and supplementary cementitious materials influence PCE compatibility, dispersion efficiency and dosage demand.
Water-to-Binder Ratio
Target W/B influences dispersion requirements, water-reduction demand and achievable concrete workability.
Aggregate System
Aggregate grading, fines content and moisture conditions influence rheology, stability and overall admixture demand.
Production Conditions
Temperature, mixing process, transport time and other admixtures can affect slump retention, consistency and final PCE performance.
FREQUENTLY ASKED QUESTIONS
What is Polycarboxylate Ether (PCE)? +
Polycarboxylate Ether is a high-performance superplasticizer technology used to improve cement dispersion, reduce water demand and control concrete workability.
What is PCE used for in concrete? +
PCE is commonly used for water reduction, workability control, slump retention and performance optimization in ready-mix, precast, SCC, HPC, UHPC and other concrete systems.
What is the difference between PCE Powder, Liquid and Flake? +
The main difference is the supply form and formulation route. Powder can be used in dry formulations or prepared as a solution; liquid is suitable for liquid admixture formulation and dosing; flake provides a concentrated form for local liquid preparation and admixture production.
Does PCE Flake provide high water reduction or slump retention? +
Yes. PCE performance depends on the polymer chemistry and grade rather than physical form alone. Different flake grades can be designed for high water reduction or slump-retention performance after proper solution preparation and formulation.
Which PCE is suitable for slump retention? +
Slump-retention-oriented grades should be selected according to the concrete system and required retention time. POLYVIA™ options include PCE 850 powder, F970 flake and SR liquid PCE.
Which PCE is suitable for high water reduction? +
High-water-reduction options include PCE 840 powder, F980 flake and HWR liquid PCE, depending on formulation and supply requirements.
Which PCE is suitable for early-strength concrete? +
POLYVIA™ ES980 Powder and ES50 Liquid are designed for concrete systems requiring faster early-strength development and production efficiency.
Can PCE Powder be dissolved in water? +
Yes. Depending on the grade and formulation route, PCE Powder can be used in dry formulations or dissolved in water for solution preparation and further formulation.
NOT SURE WHICH PCE IS RIGHT FOR YOU?
Share your application, cement system, W/B ratio and performance target. POLYVIA™ can recommend the appropriate PCE performance type, supply form and starting grade for laboratory and production trials.
